Description

ALDYNE" - LED Mini Spot - 1W - 12V DC constant voltage - front and side lighting

The extra small, powerful and modern LED Mini Spot / recessed spot with 12V DC.

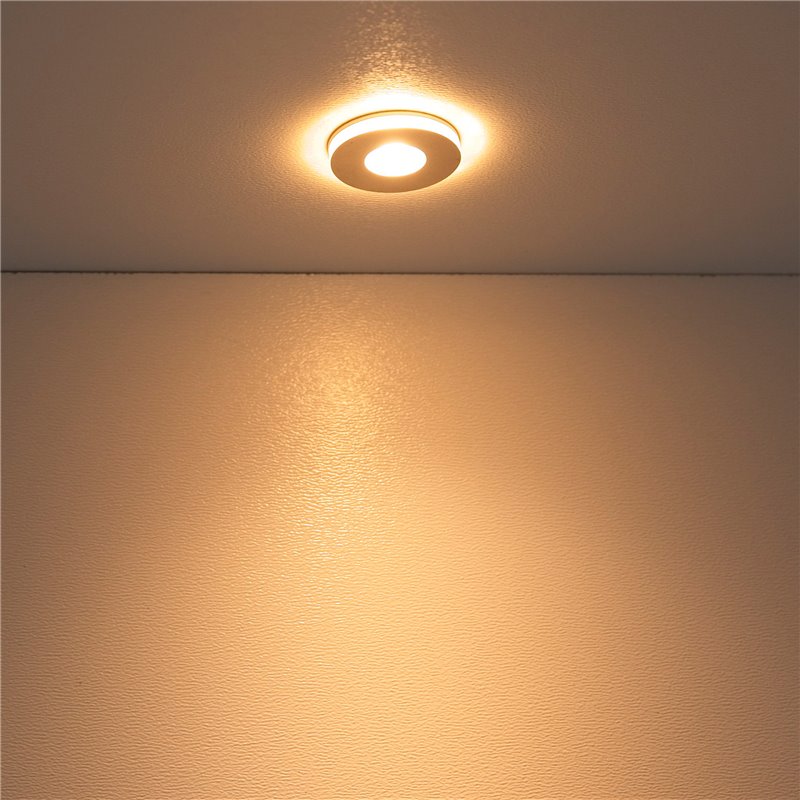

Ideal for installation locations where there is limited space for installation or when accent lighting is required.

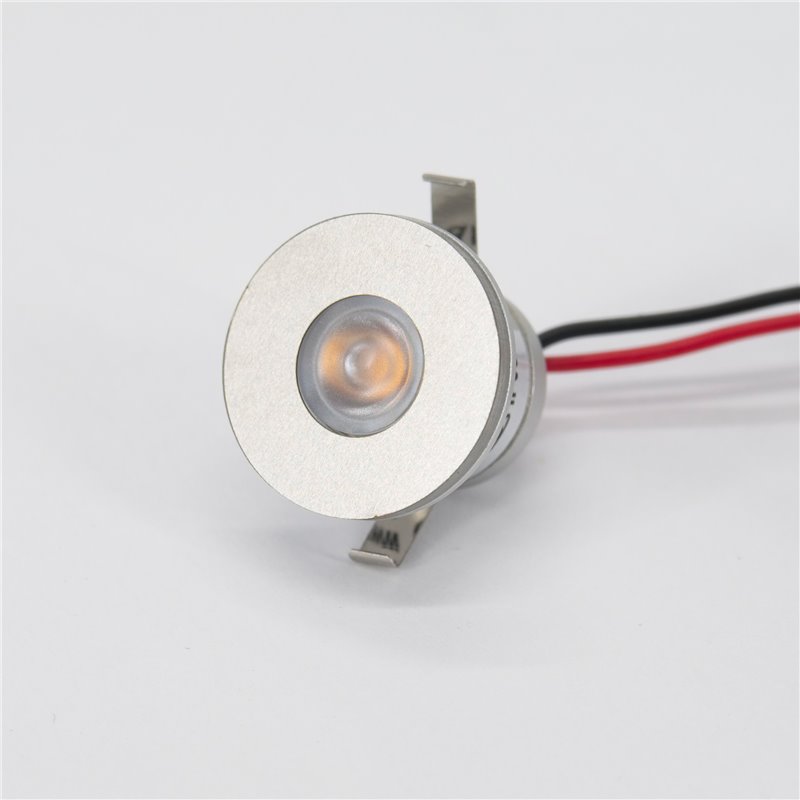

This LED recessed spot fits perfectly in any place thanks to its simple design. Installation is very easy thanks to the clamping springs in ceilings. The LED recessed spotlights each have a 17cm input cable (red) and an output cable (black).

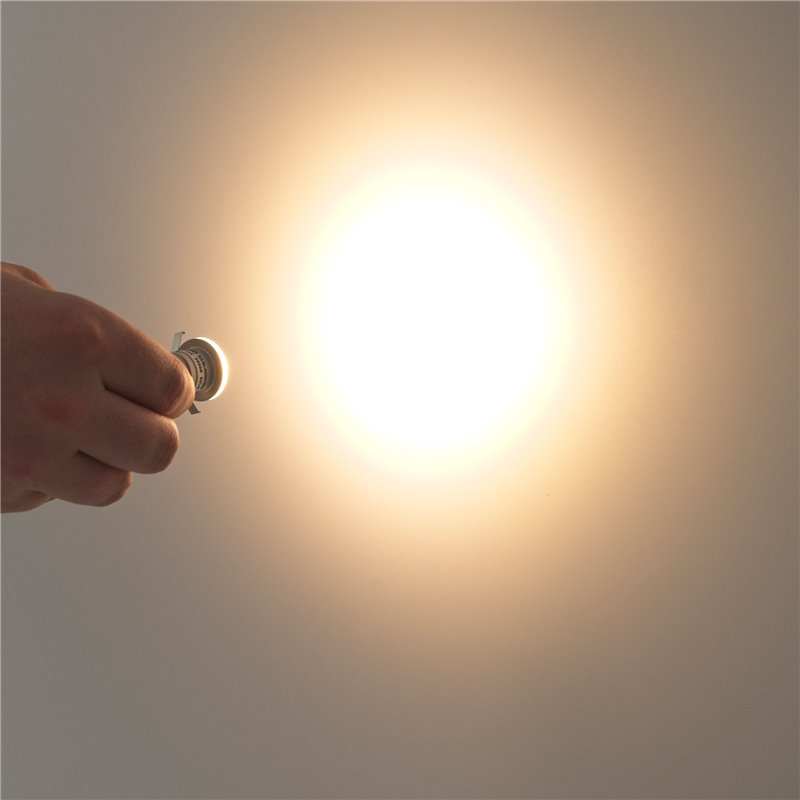

1W - 12V DC constant voltage - 60 lumen - IP65 - 3000K warm white - beam angle: 60°.

Parallel connection with 12V DC constant voltage (Please check the LED Mini Spot constant current cable diagram and find the right LED driver for the mini spots)

0 - 100% Dimmable (Only with dimmable LED driver)

For separate control of the spotlights in vers. Groups, a separate power supply is needed for each group. One remote control has four channels and can therefore control up to four different power supplies - and thus Minispot groups.

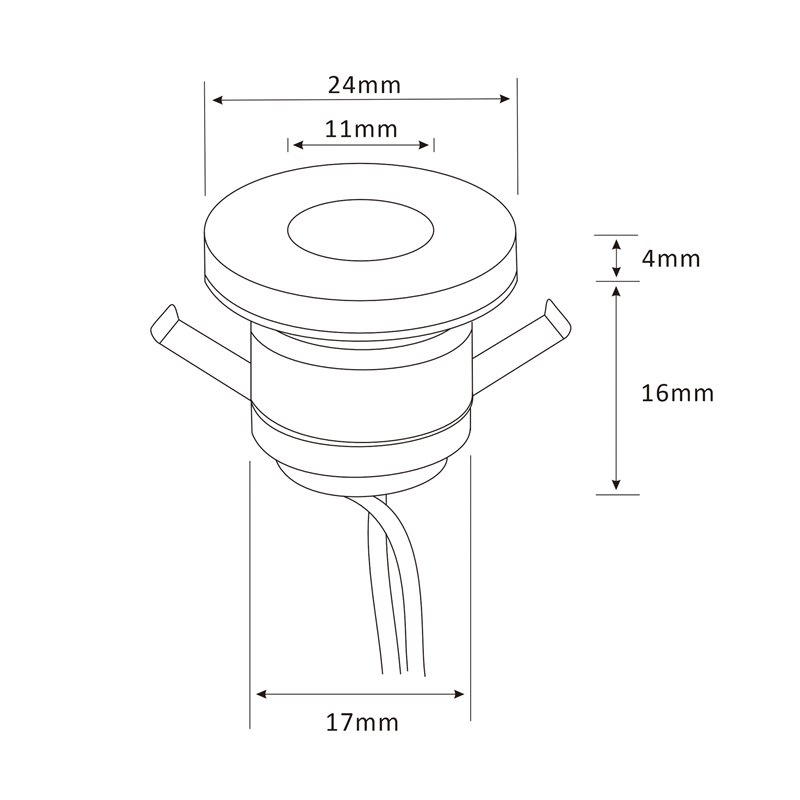

dimensions: 25mm x 24mm - hole: 18mm - 20mm

Lifetime: approx. 30.000 hours - Material: aluminum

Product Details
83041
1000 Items

Data sheet

Power
1W
Input Voltage
12V DC
Color Temperature
3000K
Dimmable
Yes
Hole Size
18-20mm
IP Class
IP65
Viewing Angle
60°
Material
Aluminium
Product Size
24mm x 20mm
