The extra small, powerful and modern LED mini spot / recessed spot with 700mA.
Ideal for installation locations where there is little space for installation or when accent lighting is to be made.
This LED recessed spot fits perfectly in any place thanks to its simple design. Installation is very easy thanks to the clamping springs in ceilings.

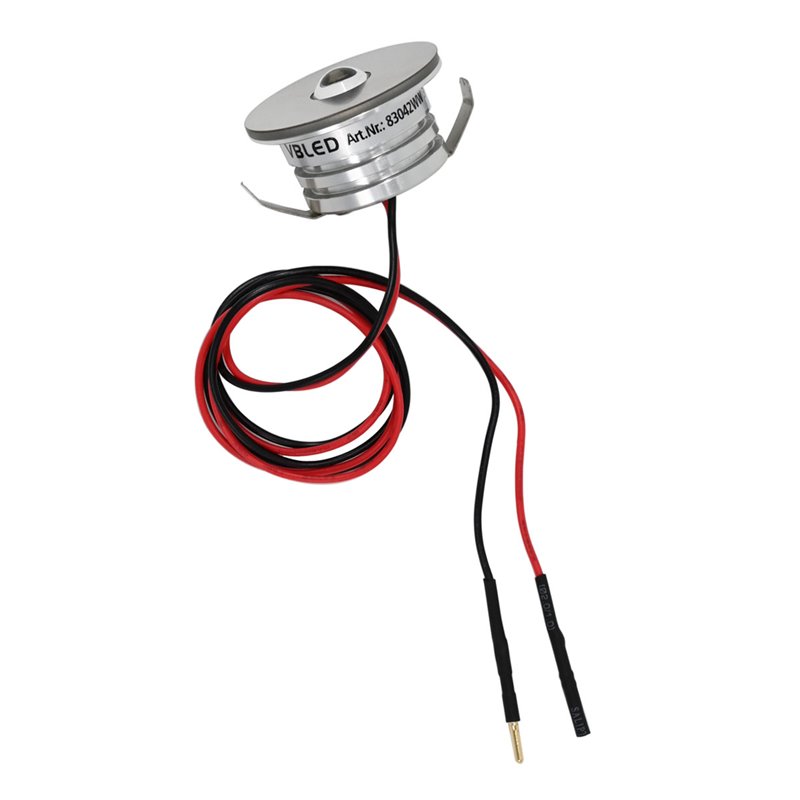

The LED recessed spotlights each have a 17cm input cable (red) and an output cable (black).
3W - 700mA constant current - 160 lumens - IP65 - 3-3.5V DC - 3000K warm white - beam angle: 60°.

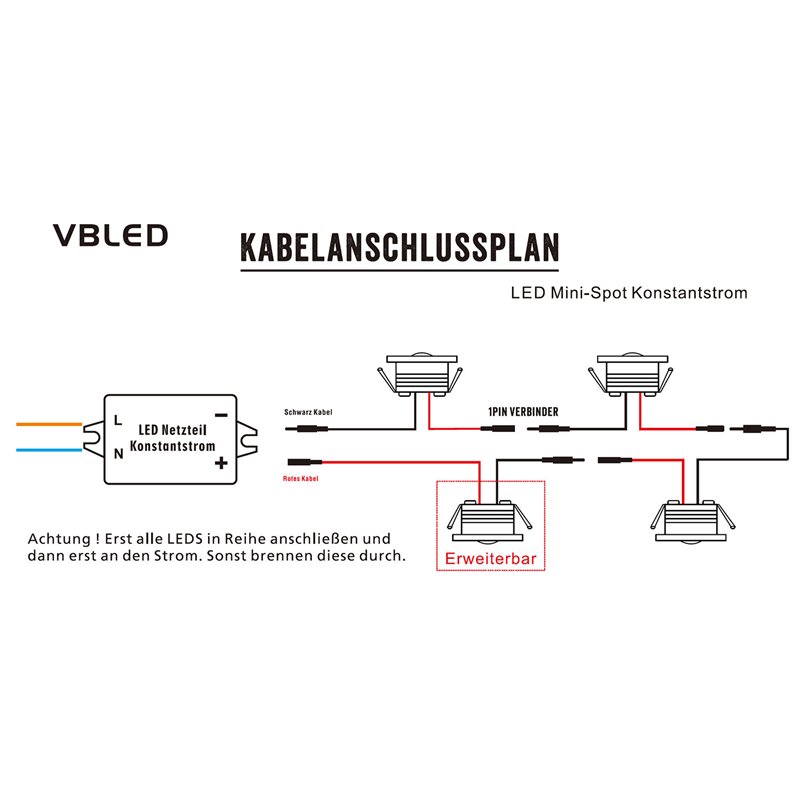

Series connection with 700mA constant current (Please check the LED Mini Spot constant current cable diagram and find the right LED driver for the Mini Spots)
0 - 100% Dimmable (Only with dimmable LED driver)
For separate control of the spotlights in vers. Groups, a separate power supply is needed for each group. One remote control has four channels and can therefore control up to four different power supplies - and thus Minispot groups.

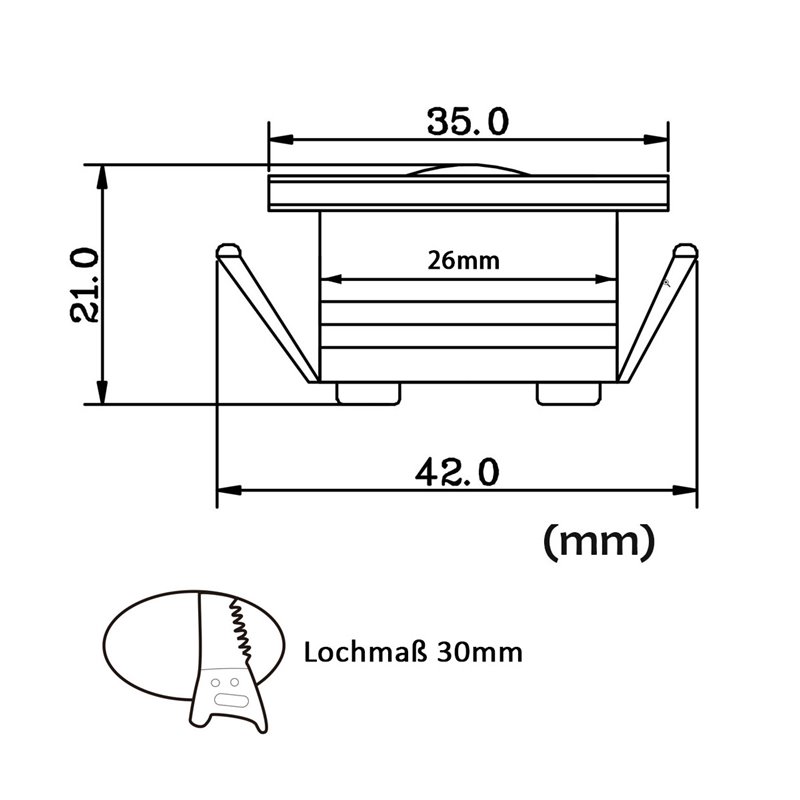

Dimensions: 35mm x 21mm - hole in the board: 30mm
With 1-pin connector for easy installation - Lifetime: approx. 30,000 hours - Material: aluminum
Here you can find a PDF catalog for all our 1W and 3W Mini LED Spots.
